GS POWER Control System

GS POWER specializes in manufacturing and supplying high quality automatic voltage stabilizers to meet the requirement of different industries as well as residential units. This stabilizer has a transformer and a power control circuit for controlling output AC voltage. The control circuit controls the voltage or power automatically and regulates it to a level that is set or required. The best part is that in the entire operation, the voltage regulator doesn’t require any manual interruption, it functions automatically. Once it is set, you need not to check the voltage every time the main voltage fluctuates. We are a quality concerned company that doesn’t compromise with the quality during the manufacturing process and even the final dispatch is done under the supervision of technical experts.

• Technical Specifications:

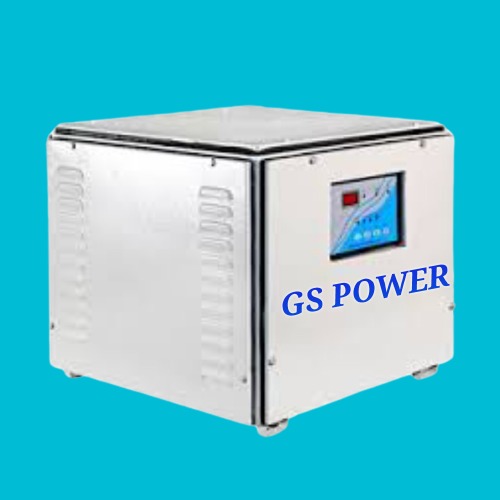

• Single Phase SCVS      1 To 25 KVA
        Input Voltage Range   170V-270V AC    Output 230V AC
        As Per Customer Requirement.

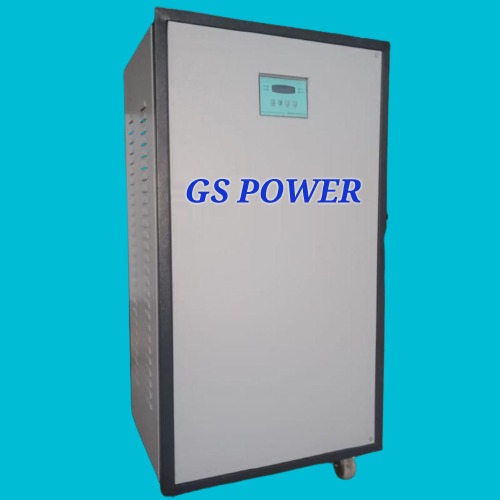

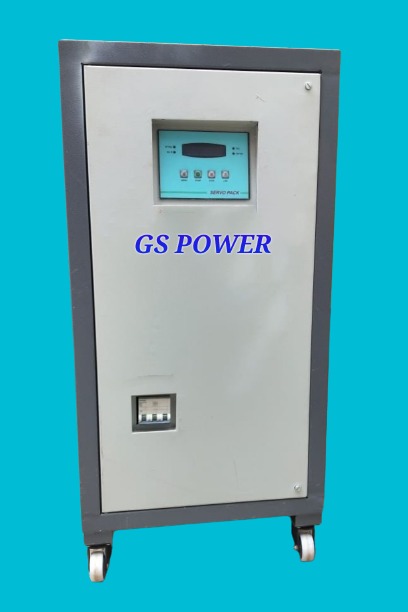

• Three Phase SCVS (Air Cooled) 3 TO 150 KVA
• Three Phase SCVS (Oil Cooled) 3 To 2000 KVA
         Input Range     300V-460V AC      Output 415V AC
                                    340-480V AC        Output 415V AC
         As Per Customer Requirement
• Rate Of Correction 35V/S Single Phase For AC Motor
                                            60V/S Three Phase For AC Motor
• Rate Of Correction 105V/S For DC Motor
• Efficiency 98%.
• DG set compatibility. Special RMS sensing circuit ensures no drift in output               Voltage even with distorted waveform. This avoids nuisance tripping of                      advanced electronic equipments.
• Inbuilt protection like Single Phasing, Output Low / High voltage setting with        audiable alarm, programmable delayed tripping circuit etc.
• Built in digital metering for measurement of Voltage, Current, Frequency.
• Use of Pulse Width modulation Technology
• Small & compact in size
• Higher overloaded capabilities
• Quick deliveries & ease of maintenance
